Composite structural elements for CNC

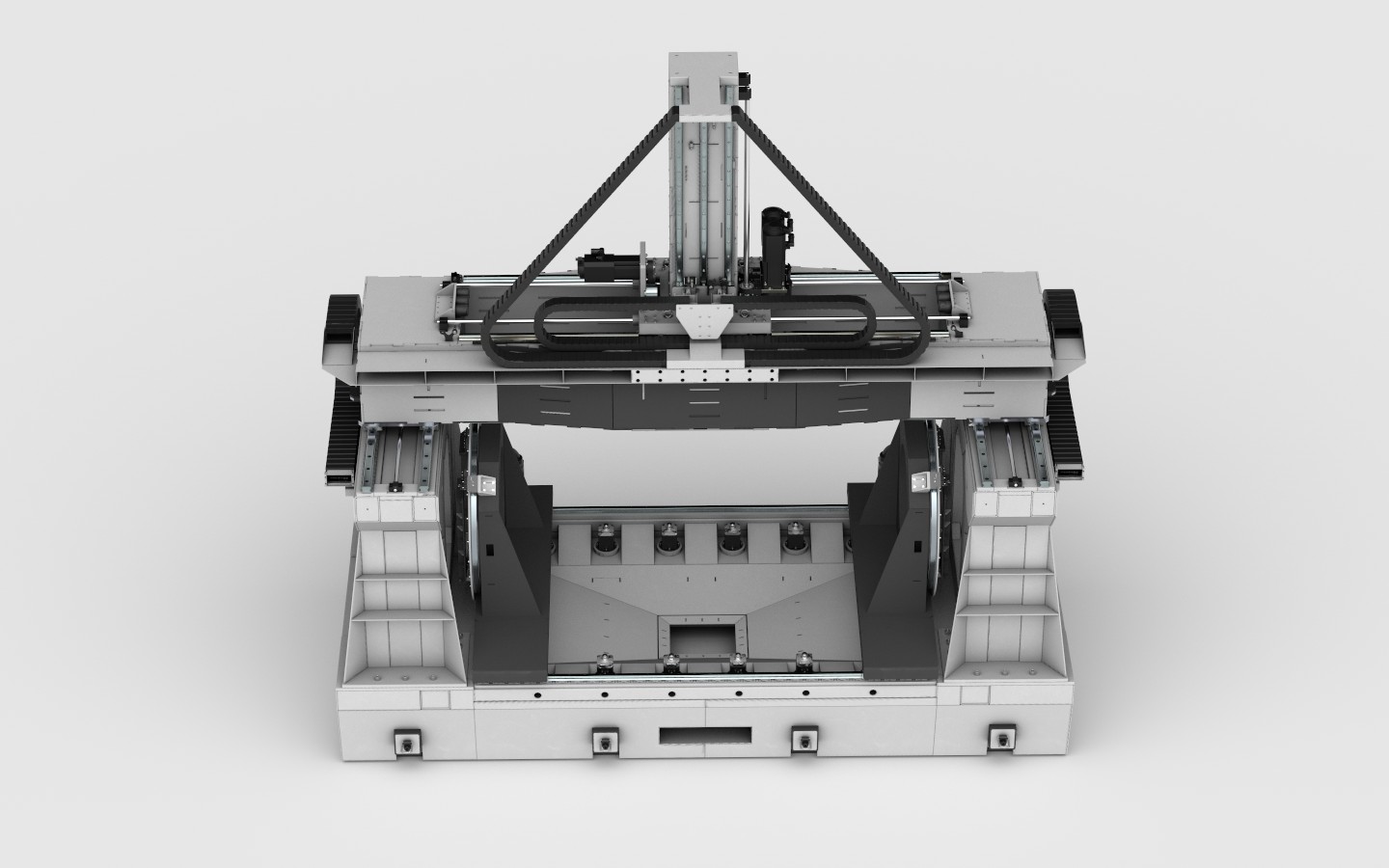

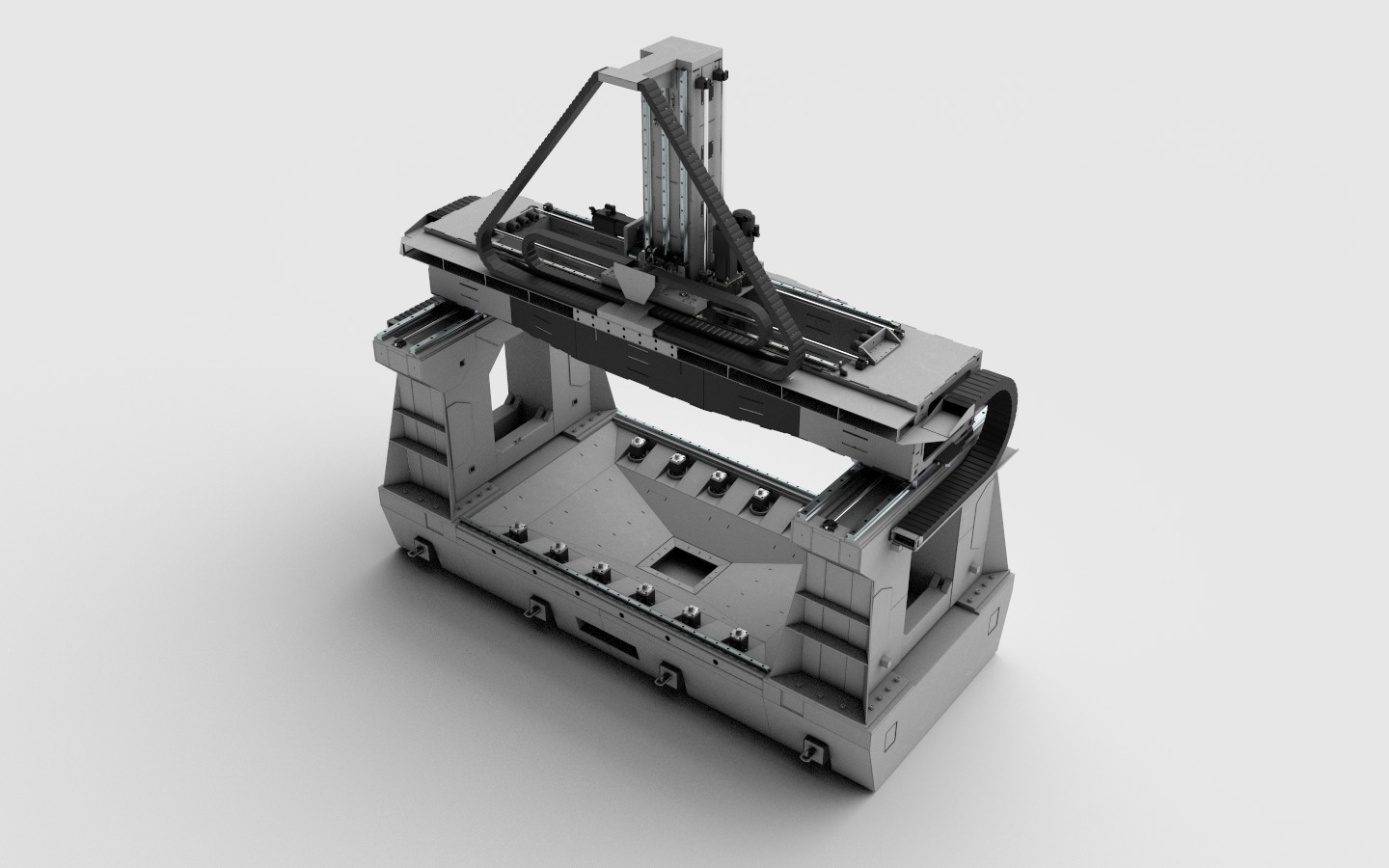

Designed a gantry-type CNC and owned the bed, side columns, and vertical column.

Adopted a composite bed (steel + synthetic granite) to balance stiffness, damping, and manufacturability.

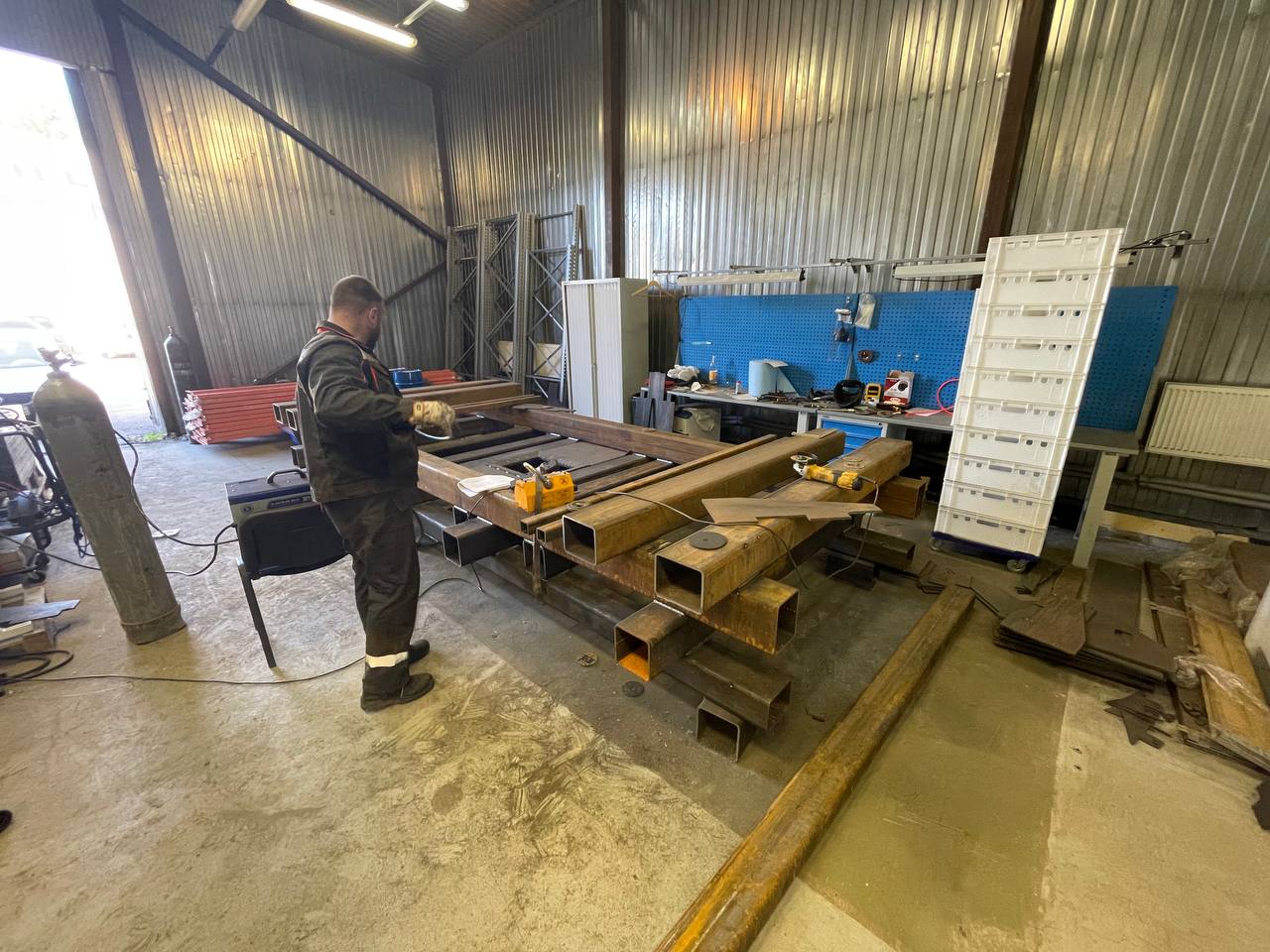

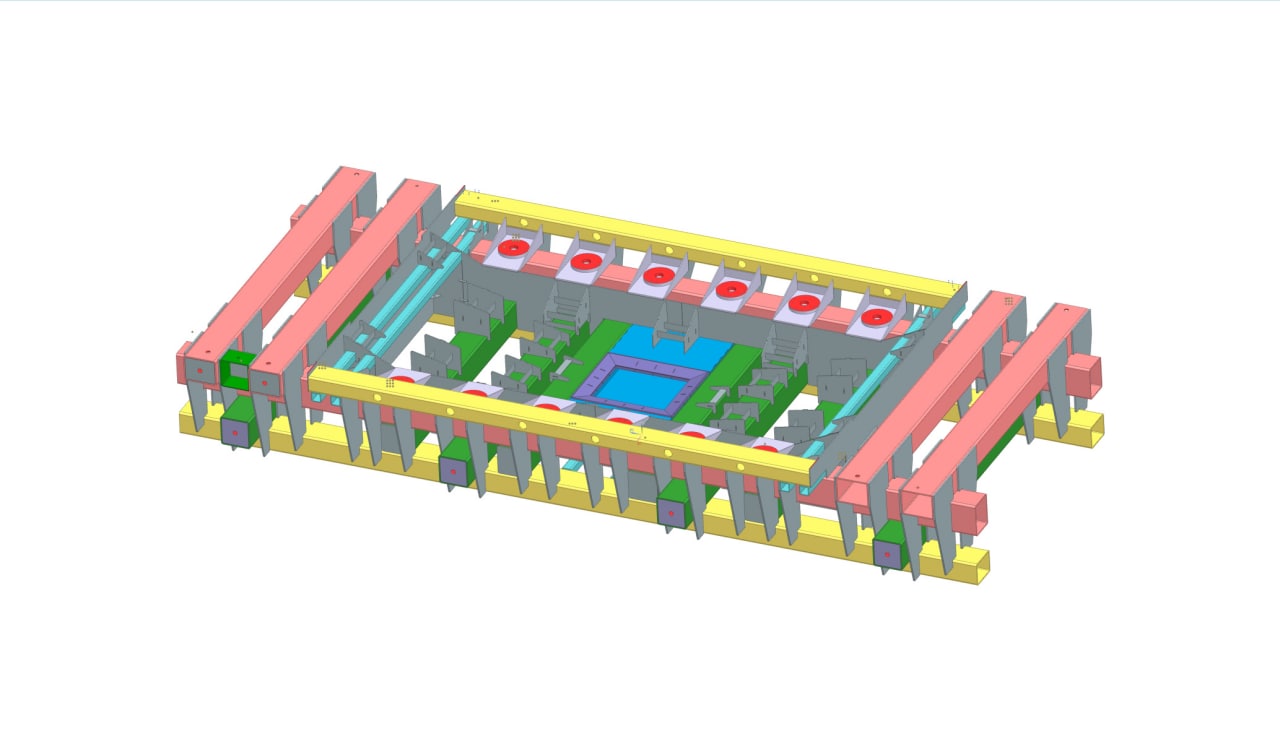

Selected a steel frame with permanent formwork. Iterated FEA and design until the target global/local stiffness was reached.

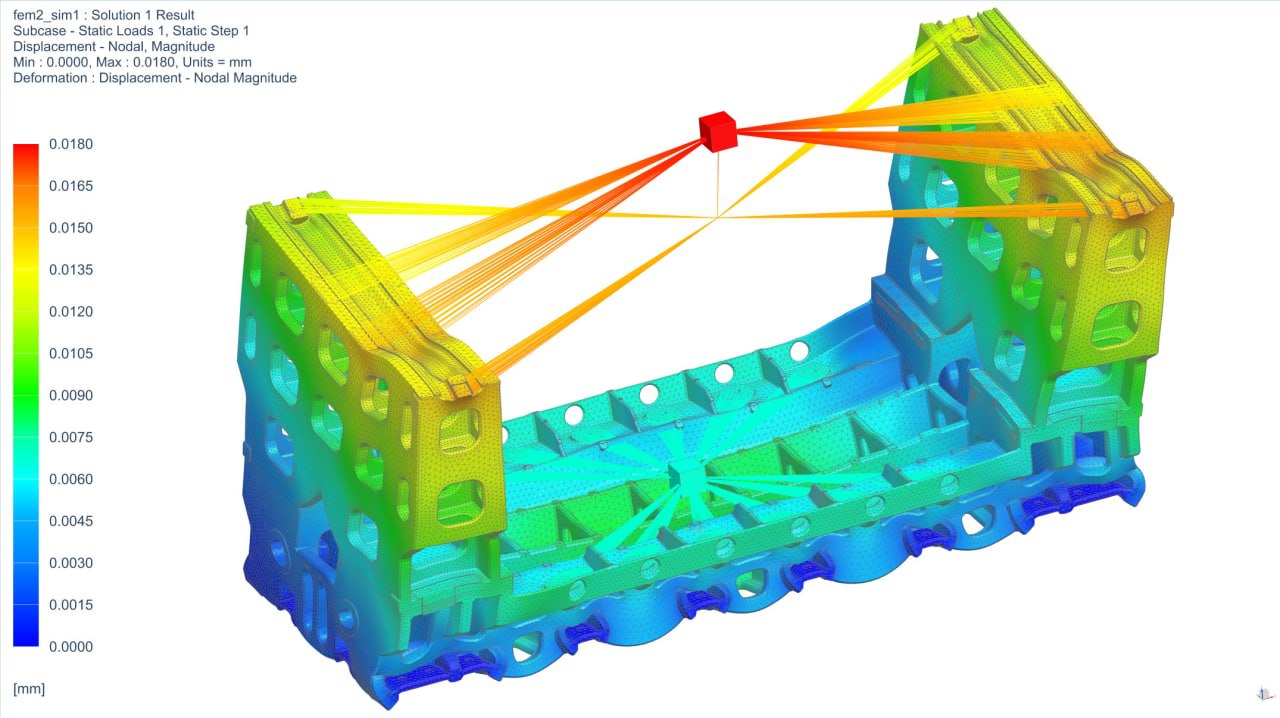

Modeled a cast-iron bed variant to benchmark stiffness, material utilization, and cost.

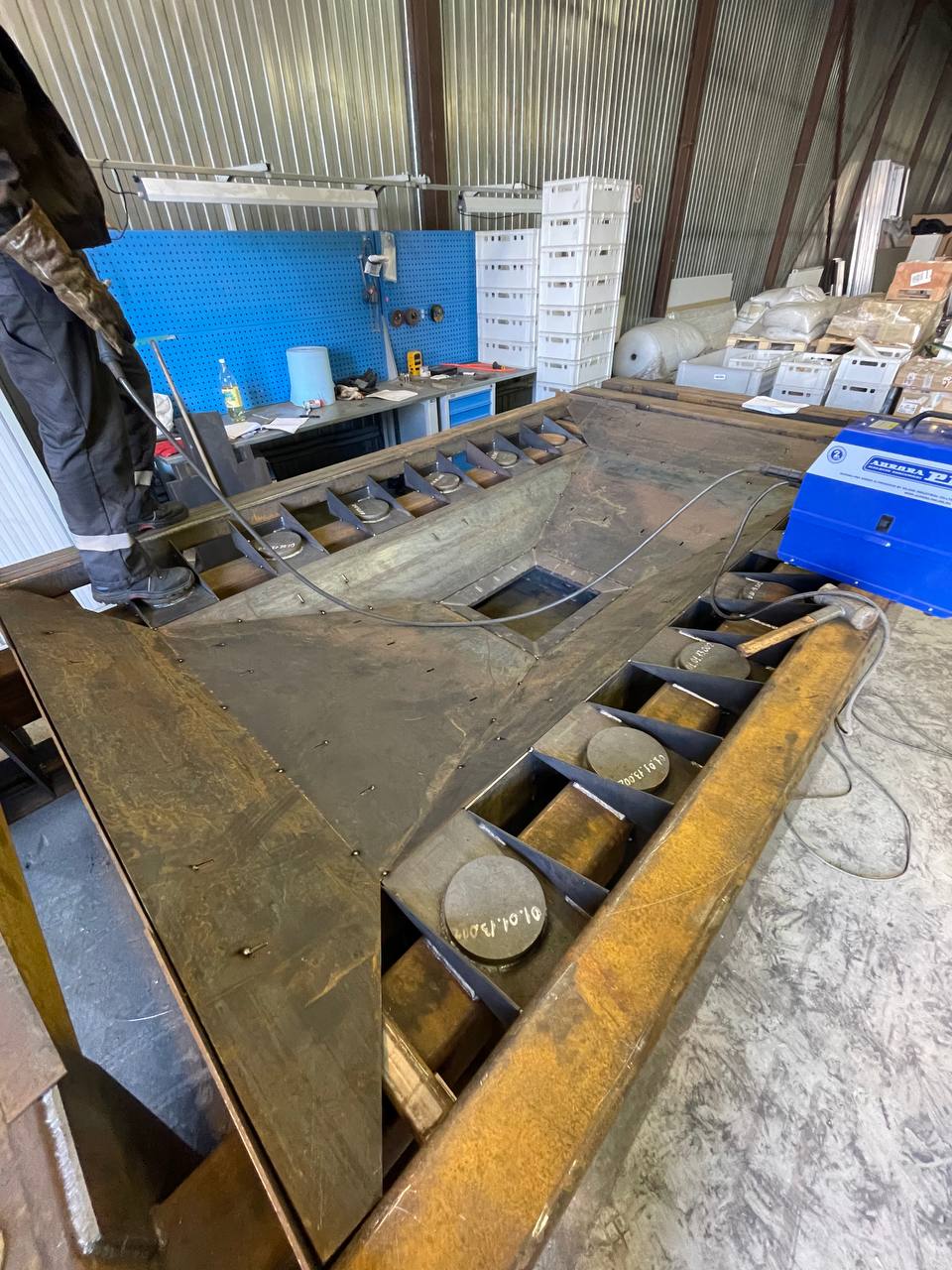

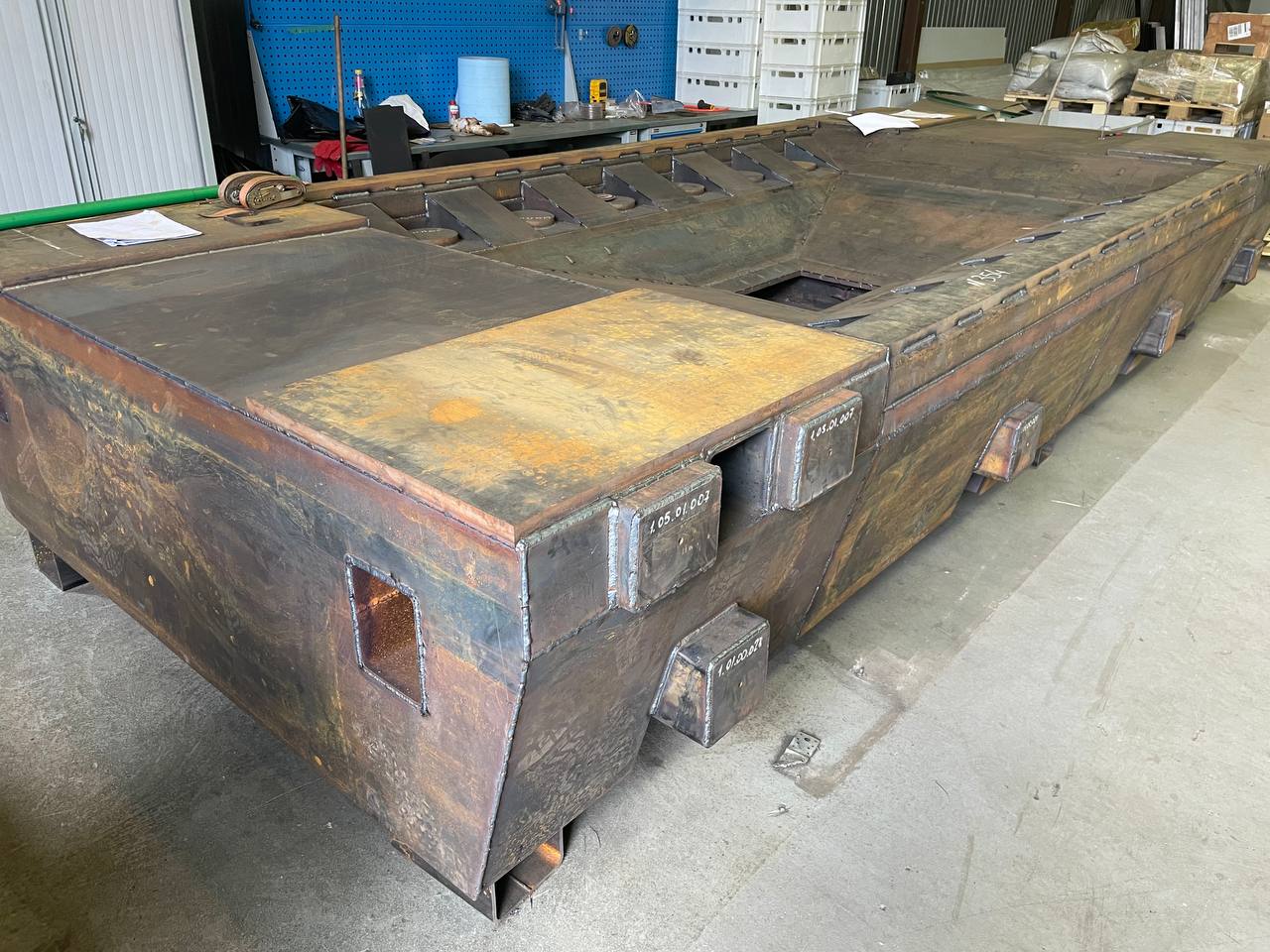

Delivered manufacturing drawings and welding procedures; bed and columns were successfully welded into a single structure.
